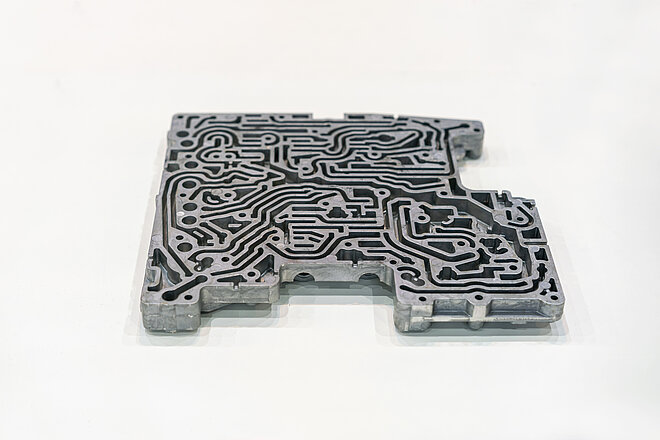

Hydraulic blocks with many bores in a small space are used to control ABS systems, for example.
Fluid flows are channelled and distributed in the units. According to the check for the presence of all bores, their diameter, position and angle must be measured.
In addition, it is tested whether chips are present in the bores. The tolerances are in the range of a few hundredths to a few tenths of a millimetre. Due to the 100% inspection and the complete inspection of all bores, the measuring time requirement is very high.
-
