ScopeCheck® S Probe

The compact tactile coordinate measuring machine for measuring small workpieces

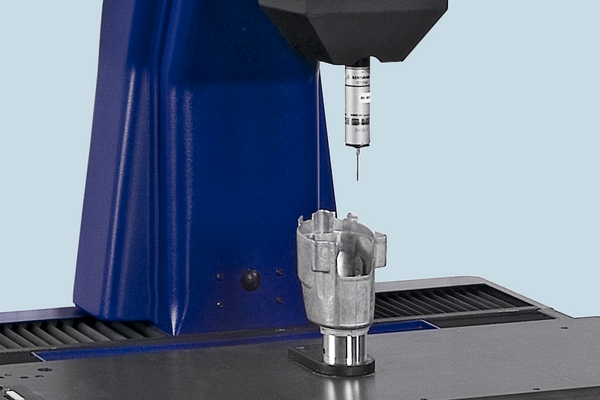

Benefits

Manual bench gauges, gages and conventional production measuring stations can be ideally supplemented or even completely replaced by the Werth ScopeCheck® S Probe. The ScopeCheck® S Probe is also suitable for areas of application that were previously reserved for expensive and complex coordinate measuring machines, thanks to its highly accurate 3D scanning probe and fast CNC continuous path control.

The hard stone based measuring machine does not require any air supply
Mechanical precision guides as well as temperature compensation guarantee reliable measurement results even under adverse environmental conditions
The ergonomic graphic user interface with a graphic user interface allows the user to determine sizes by simply clicking on the graphic
Password protection gives the operator access to the measurement software according to his level of qualification
The modular design principle allows easy expansion for future requirements

Technical Data

Tactile 3D CNC coordinate measuring machine with guideways in a single plane

X = 400 mm, Y = 200 mm, Z = 200 mm

Permissible length measurement error up to 2.4 µm
