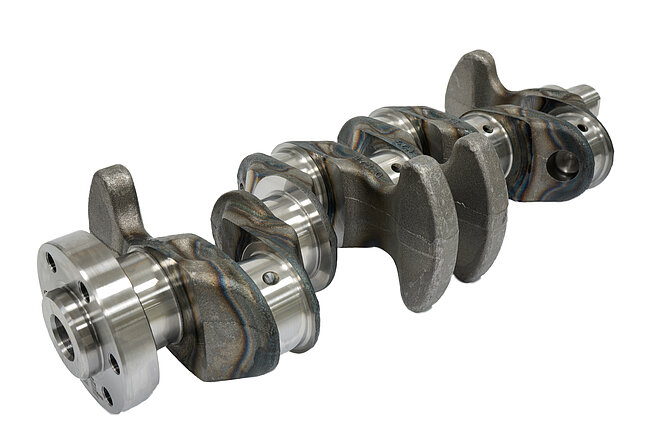

The special feature of crankshafts is the eccentric run-out of the pin bearings. The profile of the main and pin bearings, the crowning of the bearings and lengths must be measured. The requirements for measurement uncertainty are very high, with tolerances ranging from 5 µm to 20 µm. The measurement time requirements are also quite high. Vertical mounting of the crankshaft between centres is recommended for measurement.
-
