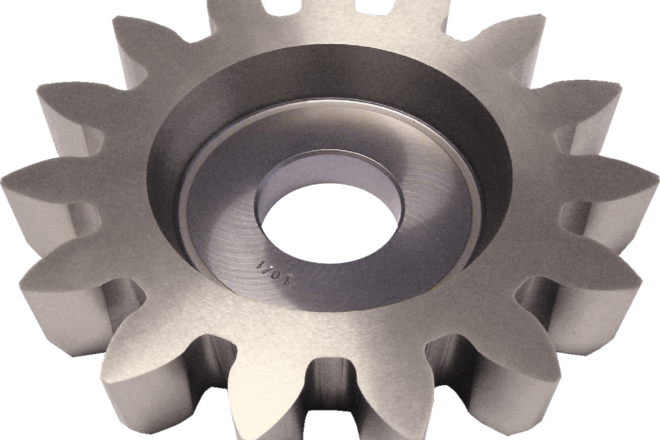

The most important geometrical characteristics to be measured are pitch, relief and the tooth profile on the cutting edge. The requirements for measurement uncertainty are very high due to the very low tolerances. The measuring time plays a subordinate role. A 4-axis system is required for the measurement of cutting wheels.
-
